Architect Friendly
Equinox is a patent pending canopy solution which removes the need for multiple subcontractors. Fully customisable, Equinox canopies enable architects to achieve architectural intent while dealing with a single provider for the completed canopy.
Specifications

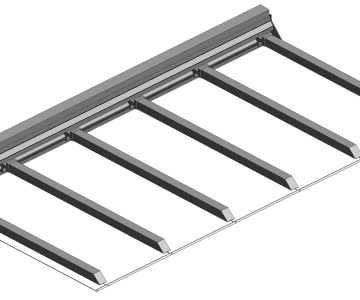

REVIT/CAD
Material
Aluminium
Canopy Tray
Aluminium or glass. Custom fascia and soffit available.
Maximum Depth
Varies based on wind zone, refer to data sheet for maximum cantilever per wind zone.
Drainage
Incorporated gutter and downpipe droppers.
Support structure
Compatible with timber, steel or concrete primary structure.
Surface Finish Options
Powdercoat, anodised, wet paint, raw aluminium (mill).

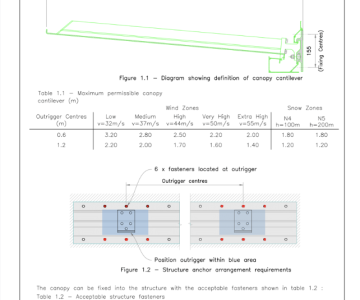

Equinox-Canopy-Datasheet-Insol.dwg
DownloadHow to specify
Please follow the steps below to specify your chosen Insol product, referring to the appropriate catalogue where necessary. These are available for download here.
All Insol products are available on Masterspec.

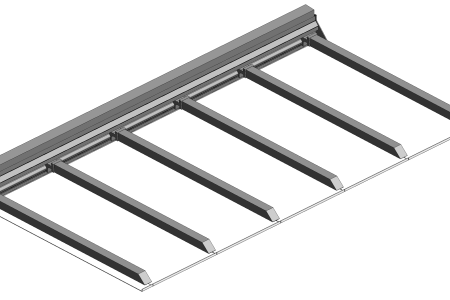

Select a canopy type
Choose from our range of Solaris louvres. See the Canopy portfolio for more information and span tables.

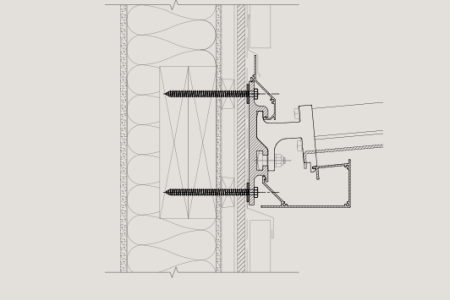

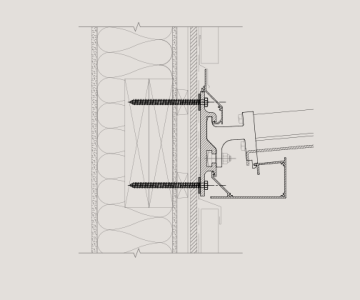

Select a fixing detail
Choose the appropriate mounting detail.
Select a finish
Choose from powder coated or anodised finish options.
