Ray

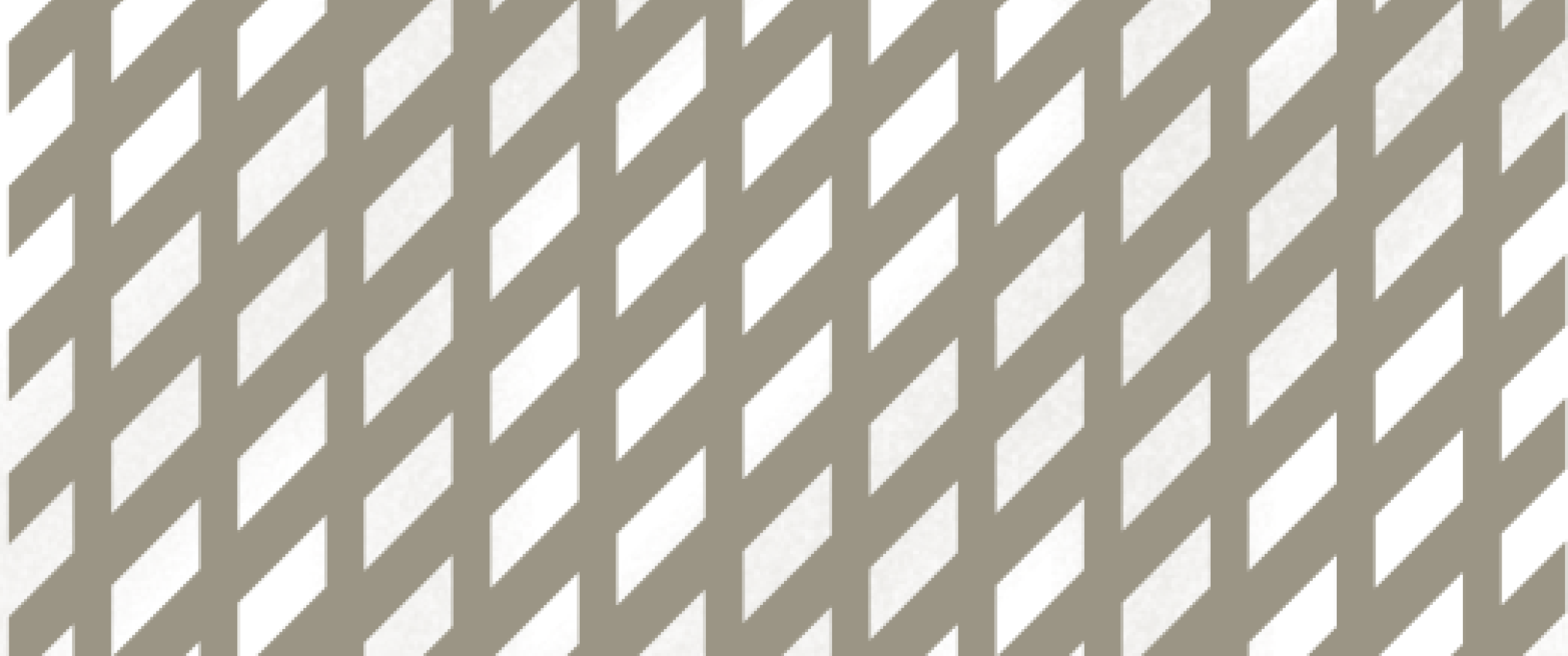

A stylised version of a parallelogram tessellation.
Specifications
Fixing Details
Material
3 mm (0.12”) 5005 grade Aluminium
Finishes available
Powdercoat or Anodised
Open area
35%
Weight
3.58 kg/m3 (0.33 lbs/ft3)
Wind noise rating
High risk
Dapple Standard Fixing Details
DownloadHow to specify
Please follow the steps below to specify your chosen Insol product, referring to the appropriate catalogue where necessary. These are available for download here.
All Insol products are available on Masterspec.
1
Select a dapple pattern
Choose from our range of dapple perforated metal patterns. See the dapple portfolio for sizes and wind noise risk ratings.
2
Select a fixing detail
Choose the appropriate mounting detail.
3
Select a finish
Choose from powder coated or anodised finish options.
