Sharp and distinct
The Caldera louvre system features a parallelogram shaped louvre. Its bold appearance makes for a striking complement to any modern architectural building and has remained popular since its launch.
Specifications
Data Sheet
Fixing Details
REVIT/CAD
Material
Extruded aluminium
Louvre Shape
Parallelogram
Orientation
Vertical or Horizontal
Span
Refer data sheet for individual profile spans
Weight
Refer data sheet for individual profile weights
Surface Finish Options
Powdercoat, anodised, wet paint, raw aluminium (mill)
Insol Louvres
Download

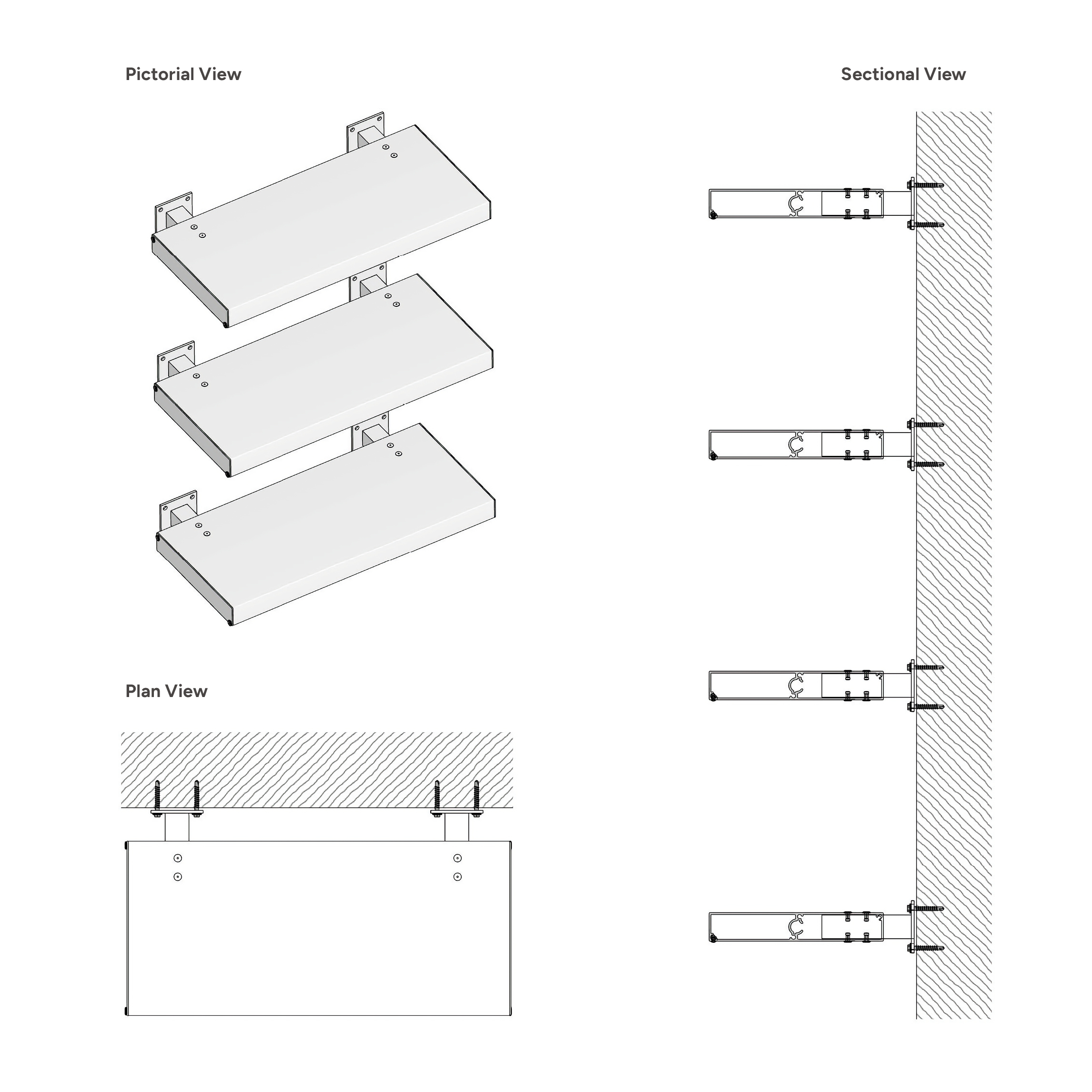

Outrigger Bracket
Download

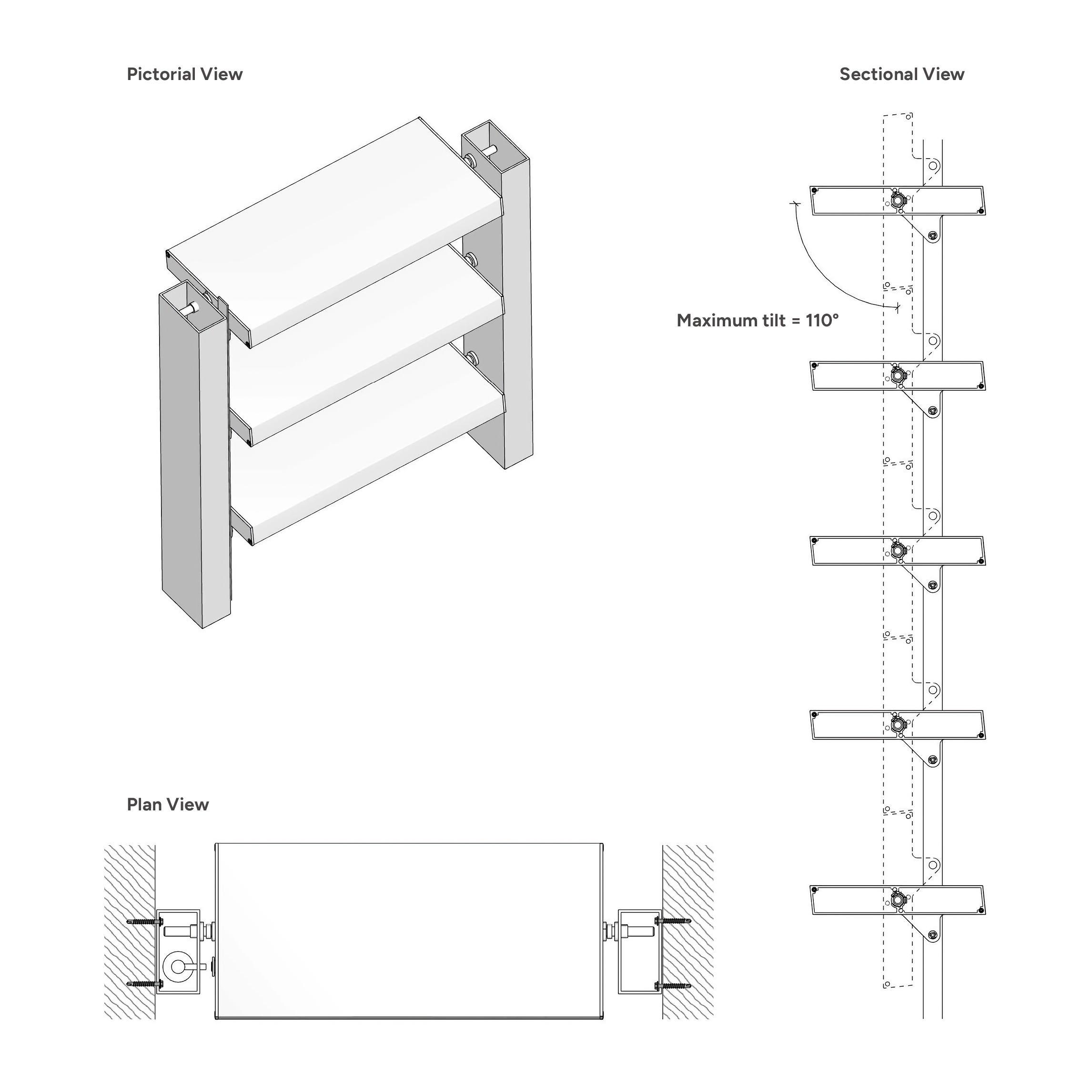

Operable
Download

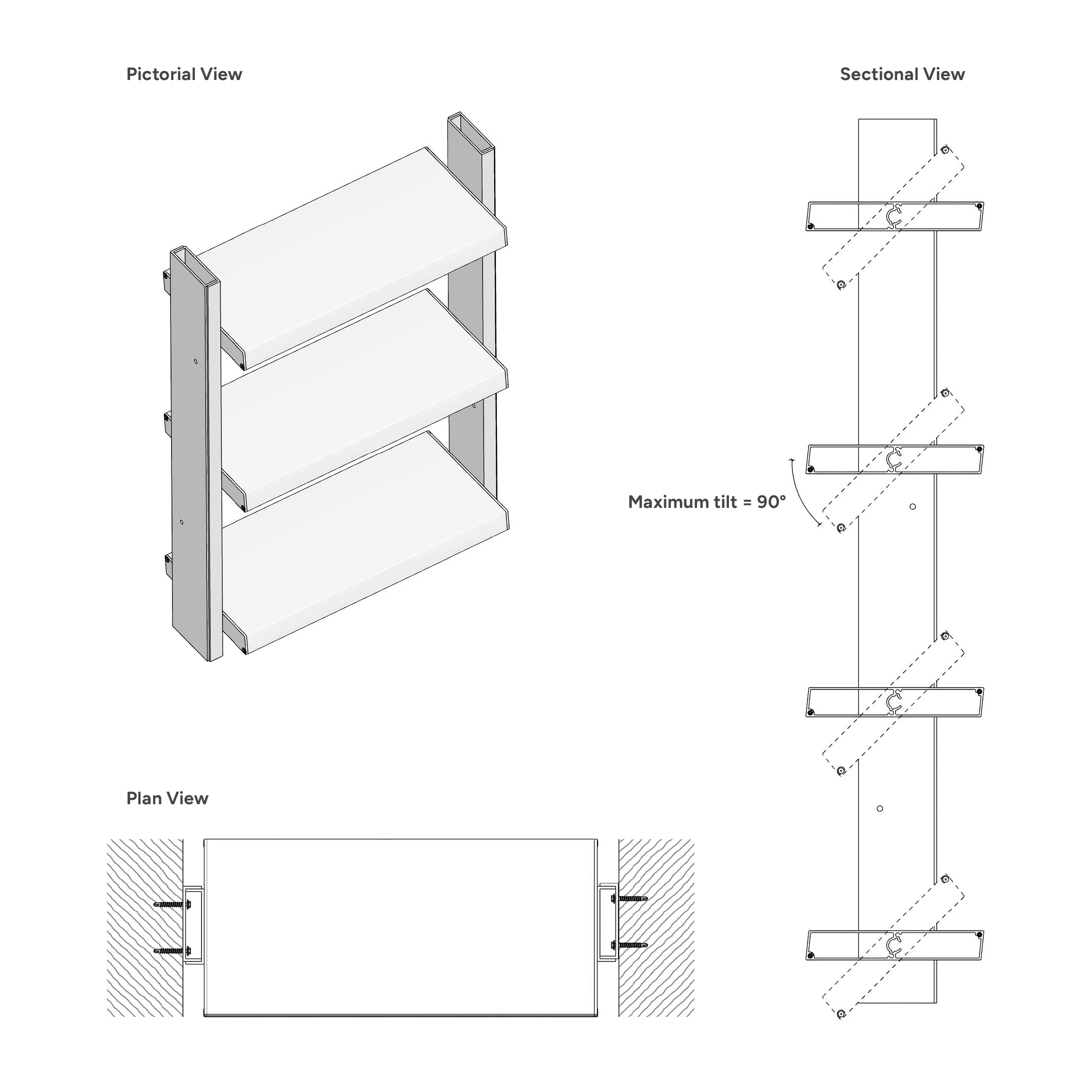

End Fixed
Download

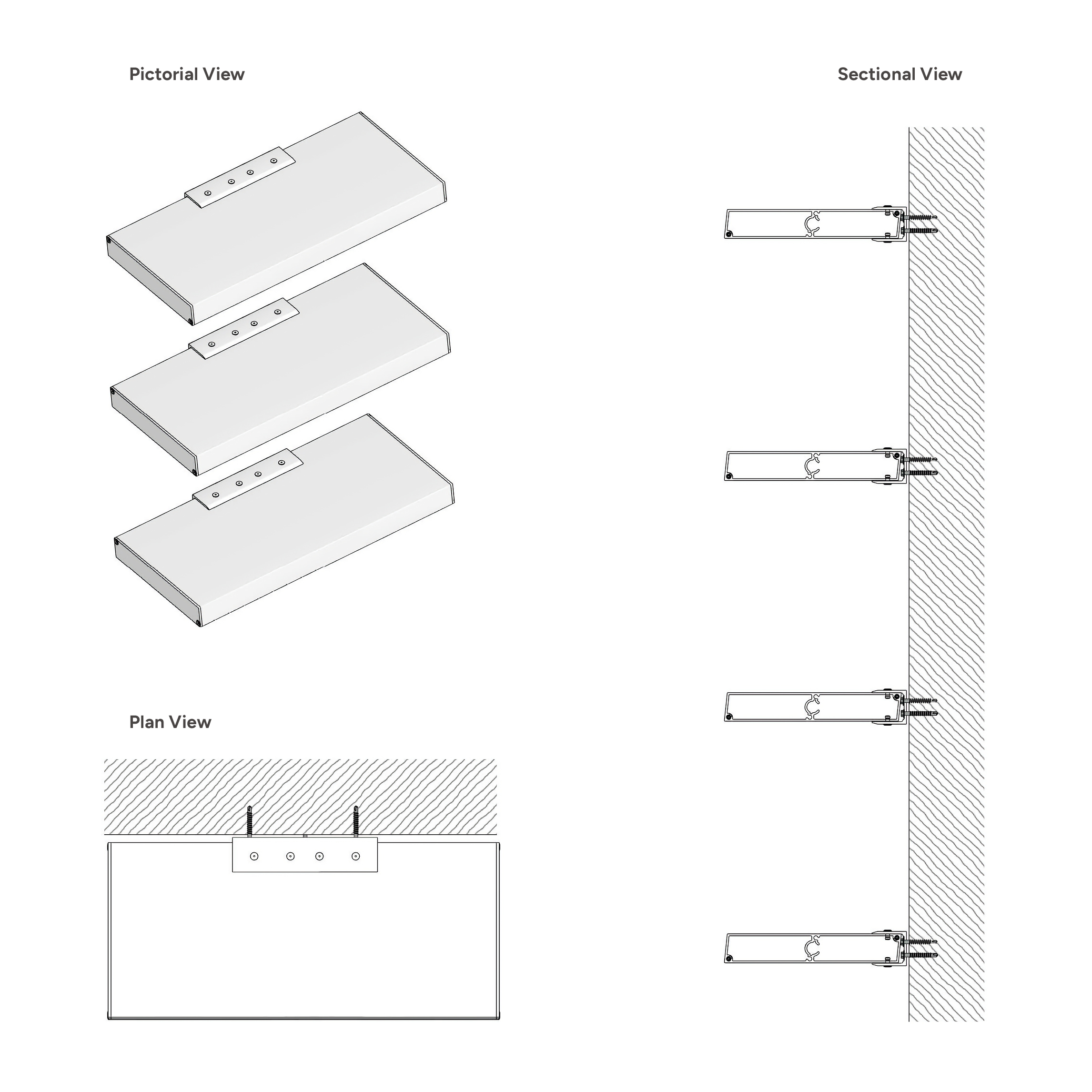

Rear Channel
Download

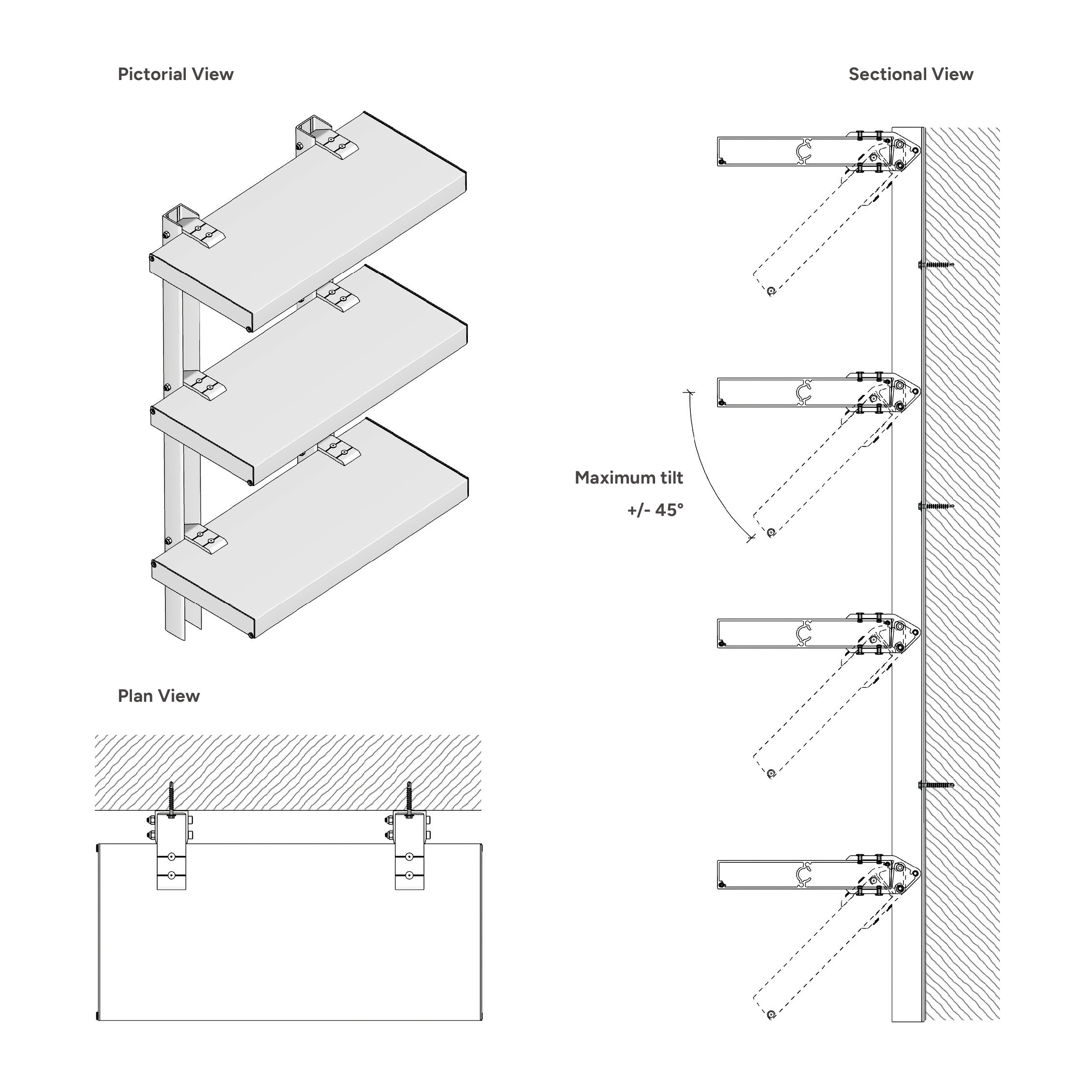

Clasp Bracket
Download

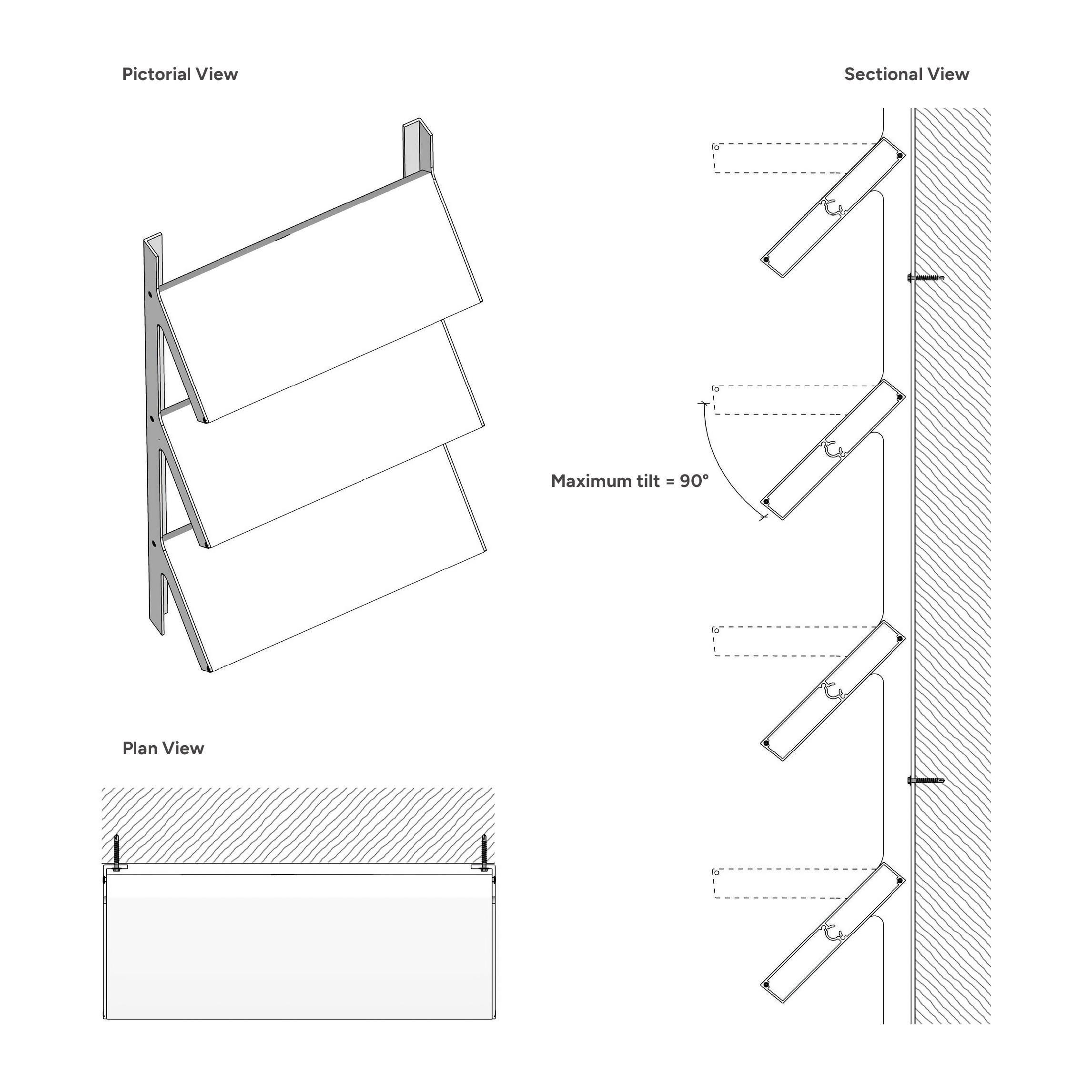

Profiled End Brackets
Download

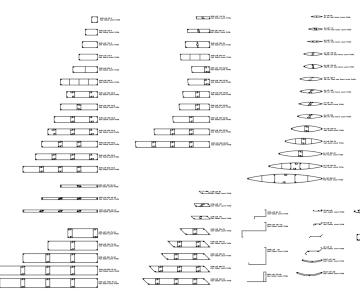

Insol Louvre Profiles.dwg
DownloadHow to specify
Please follow the steps below to specify your chosen Insol product, referring to the appropriate catalogue where necessary. These are available for download here.
All Insol products are available on Masterspec.
Select a louvre type
Choose from our range of Caldera louvres. See the louvre portfolio for sizes and span tables.

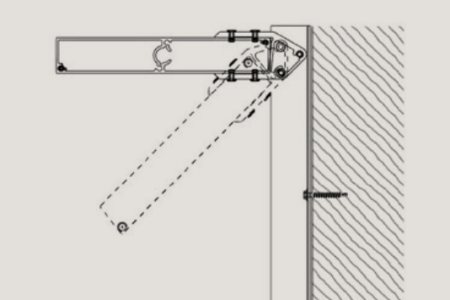

Select a fixing detail
Choose the appropriate mounting detail.
Select a finish
Choose from powder coated or anodised finish options.
